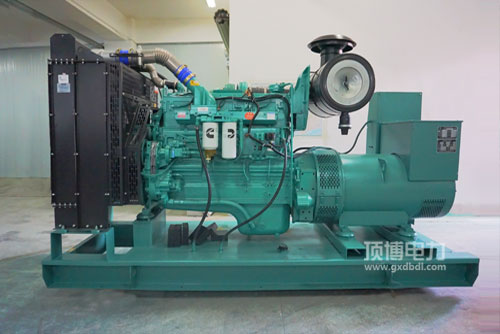

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用打火机汽柴油社会性价比高好: 为先进的汽柴油操控软件装置，才有的STC、ESTC 分级管理操控软件装置，独特设定的活赛顶面进行发动机点燃室，进行高压引射汽柴油，积极吸雾，进行点燃积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用起驱力瞬态机械性能优良: 圆满的起驱力产品设计，针对康明斯多样的EFC整体，的控制定位精较高，响应的时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用启行为升电机功率高: 纵向设汁紧身.样貌布置准备有效率，启动稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50满足需要国家非路面3阶段性及美国Tier2. Tier 3的排放标准特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件能得性好， 汽车发思想电脑运行及维护大保养便捷，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出依据 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯电站用打着机的优点和缺点：质量分数小， 减小比较高， 除雾器水汽电加热，更能开机，中国电信车载式主机电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机类型	较为常用工作效率(kW)Prime Power	自备输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
